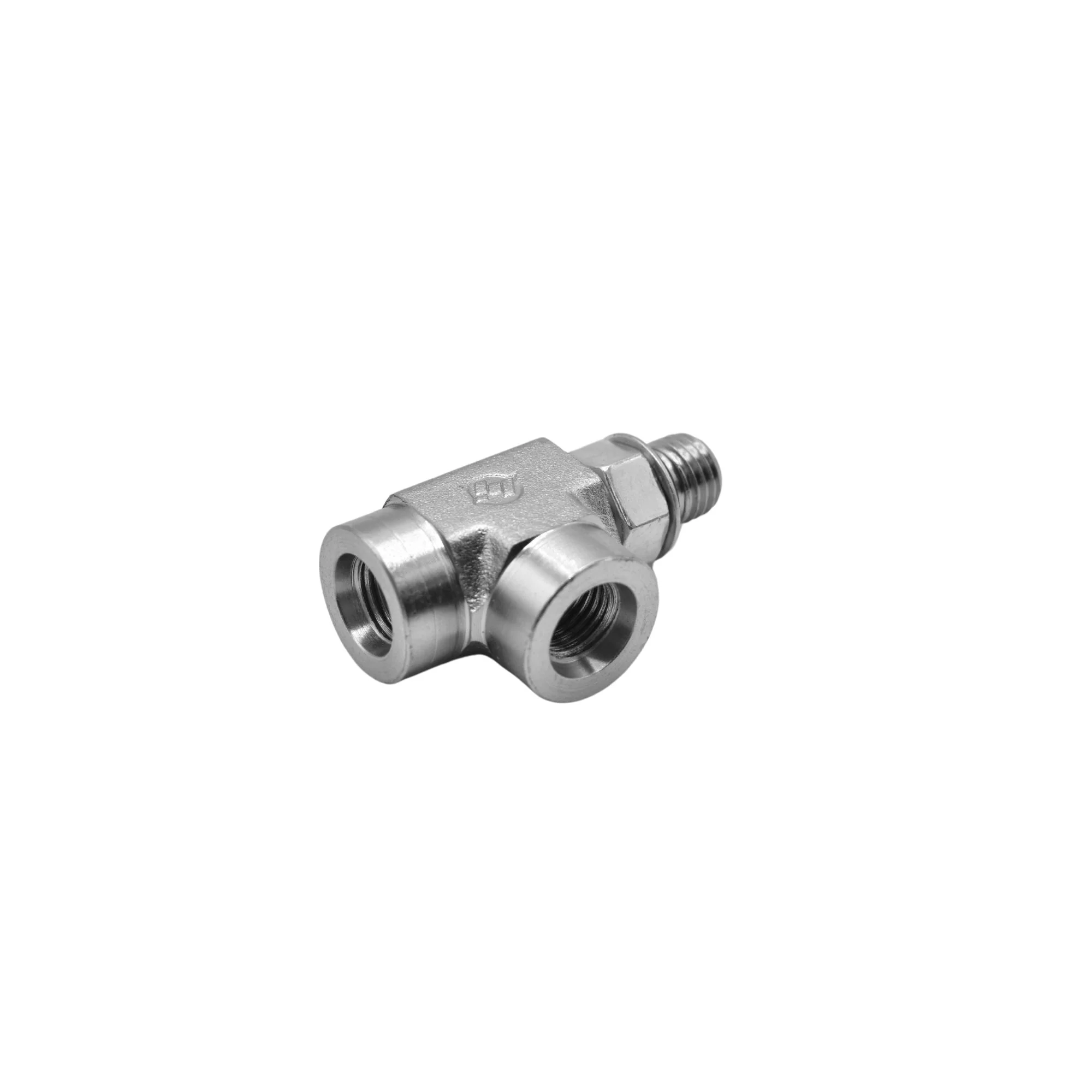

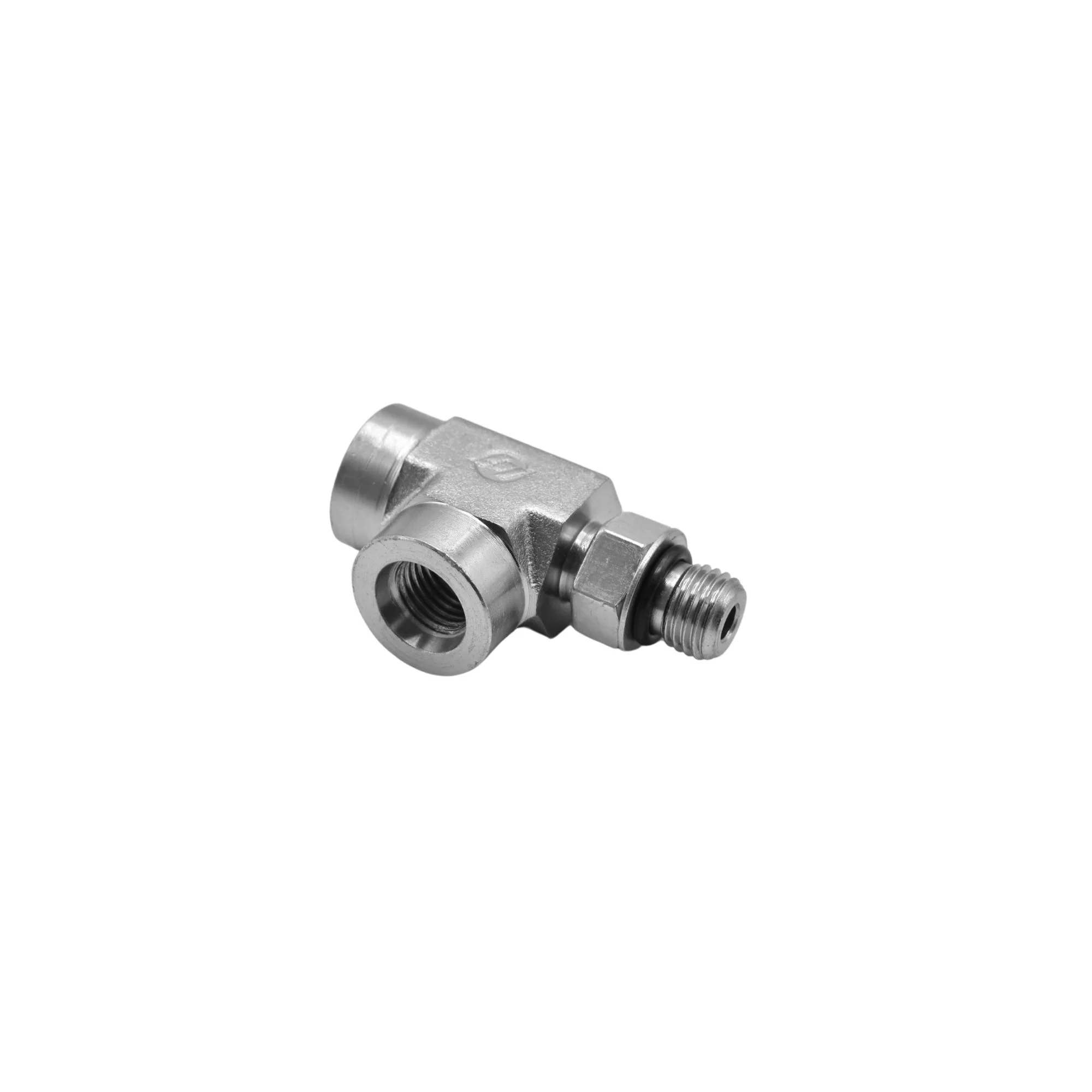

Hydraulics | MAORB-FORB-FORB | 6835-04-04-04-NWO-FG
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE O-RING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE O-RING BOSS |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 0.740 |
| CENTERLINE LENGTH M IN | 1.230 |
| CENTERLINE LENGTH M2 IN | 0.740 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE O-RING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE O-RING BOSS |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 0.740 |
| CENTERLINE LENGTH M IN | 1.230 |
| CENTERLINE LENGTH M2 IN | 0.740 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
$14.80
Hydraulics | MAORB-FORB-FORB | 6835-04-04-04-NWO-FG—
$14.80
Description
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE O-RING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE O-RING BOSS |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 0.740 |
| CENTERLINE LENGTH M IN | 1.230 |
| CENTERLINE LENGTH M2 IN | 0.740 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1937 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
