Hydraulic | GP-F20 Gear Pump, 0.97 5/8" Clockwise | GP-F20-16-P-C

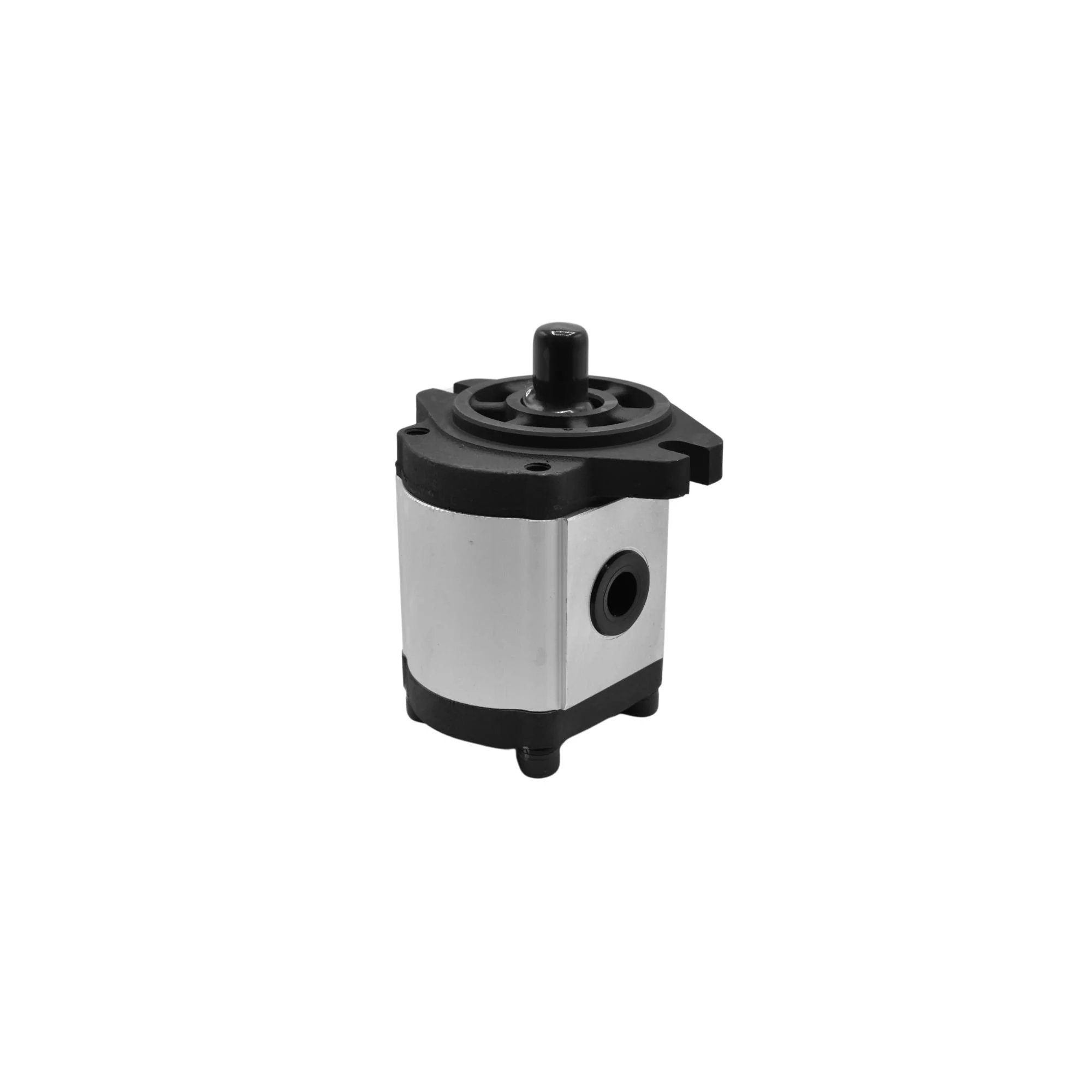

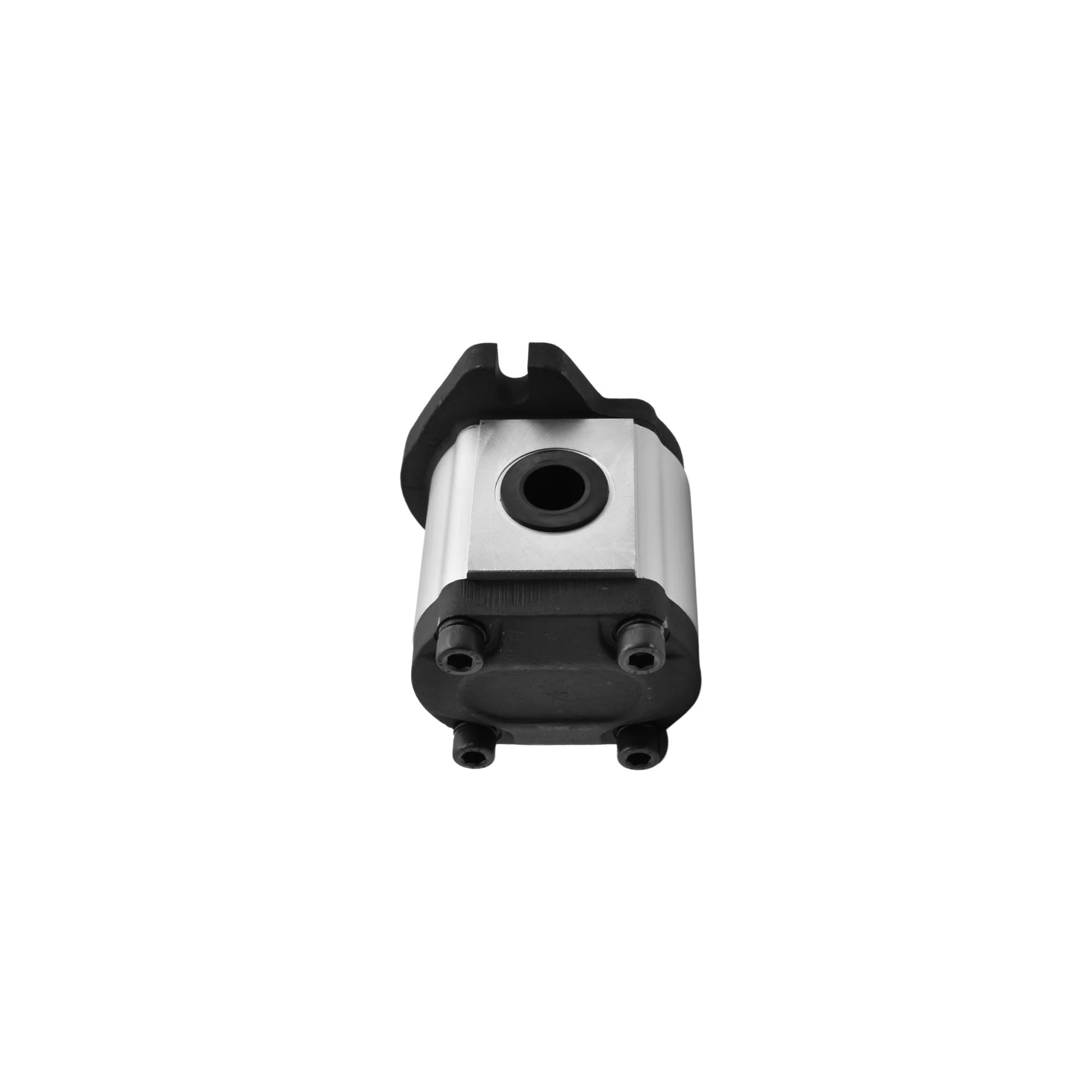

The GP-F20 Hydraulic Gear Pump is designed for high-pressure applications and features an aluminum center section with durable cast iron end plates. This pump offers 11 displacement sizes ranging from 0.24 to 1.95 in³/rev (4 to 32 cm³/rev). It comes with a standard SAE A – 2 bolt mounting flange and a 5/8” straight drive shaft with a 5/32” key, with additional shaft options available to suit various needs.
For optimal performance, the recommended working conditions include filtration of 25 microns or better, oil viscosity between 7 and 700 cSt, and an inlet pressure range of 12 to 32 psi absolute. The pump operates effectively within an oil temperature range of -25°C to 80°C (-12°F to 175°F) and an ambient temperature range of -22°C to 55°C (-8°F to 130°F).
The GP-F20 Hydraulic Gear Pump is designed for high-pressure applications and features an aluminum center section with durable cast iron end plates. This pump offers 11 displacement sizes ranging from 0.24 to 1.95 in³/rev (4 to 32 cm³/rev). It comes with a standard SAE A – 2 bolt mounting flange and a 5/8” straight drive shaft with a 5/32” key, with additional shaft options available to suit various needs.
For optimal performance, the recommended working conditions include filtration of 25 microns or better, oil viscosity between 7 and 700 cSt, and an inlet pressure range of 12 to 32 psi absolute. The pump operates effectively within an oil temperature range of -25°C to 80°C (-12°F to 175°F) and an ambient temperature range of -22°C to 55°C (-8°F to 130°F).
Original: $247.84
-65%$247.84
$86.74Description
The GP-F20 Hydraulic Gear Pump is designed for high-pressure applications and features an aluminum center section with durable cast iron end plates. This pump offers 11 displacement sizes ranging from 0.24 to 1.95 in³/rev (4 to 32 cm³/rev). It comes with a standard SAE A – 2 bolt mounting flange and a 5/8” straight drive shaft with a 5/32” key, with additional shaft options available to suit various needs.
For optimal performance, the recommended working conditions include filtration of 25 microns or better, oil viscosity between 7 and 700 cSt, and an inlet pressure range of 12 to 32 psi absolute. The pump operates effectively within an oil temperature range of -25°C to 80°C (-12°F to 175°F) and an ambient temperature range of -22°C to 55°C (-8°F to 130°F).
